XLR Splitter 3

XLR Splitter 3

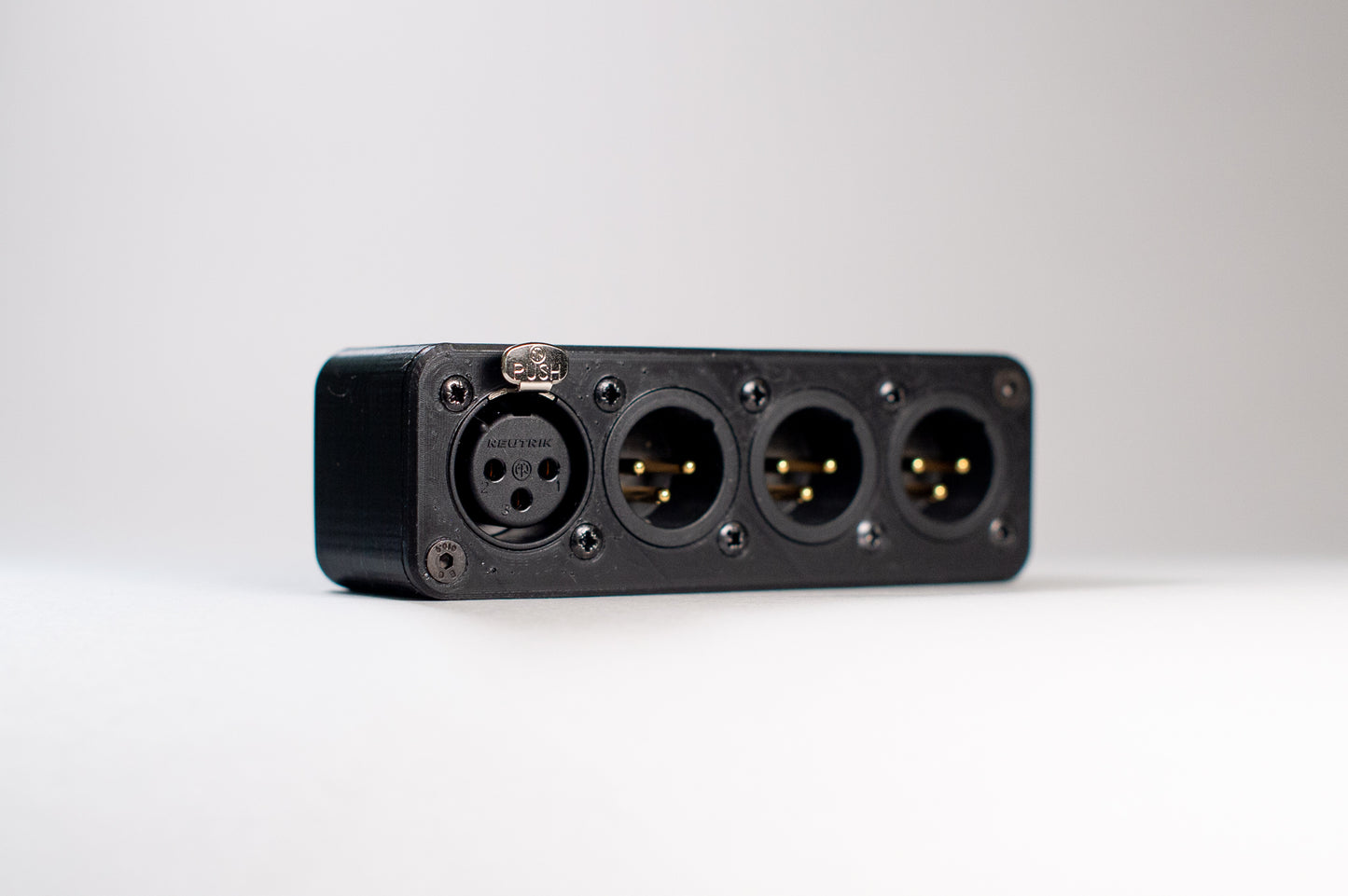

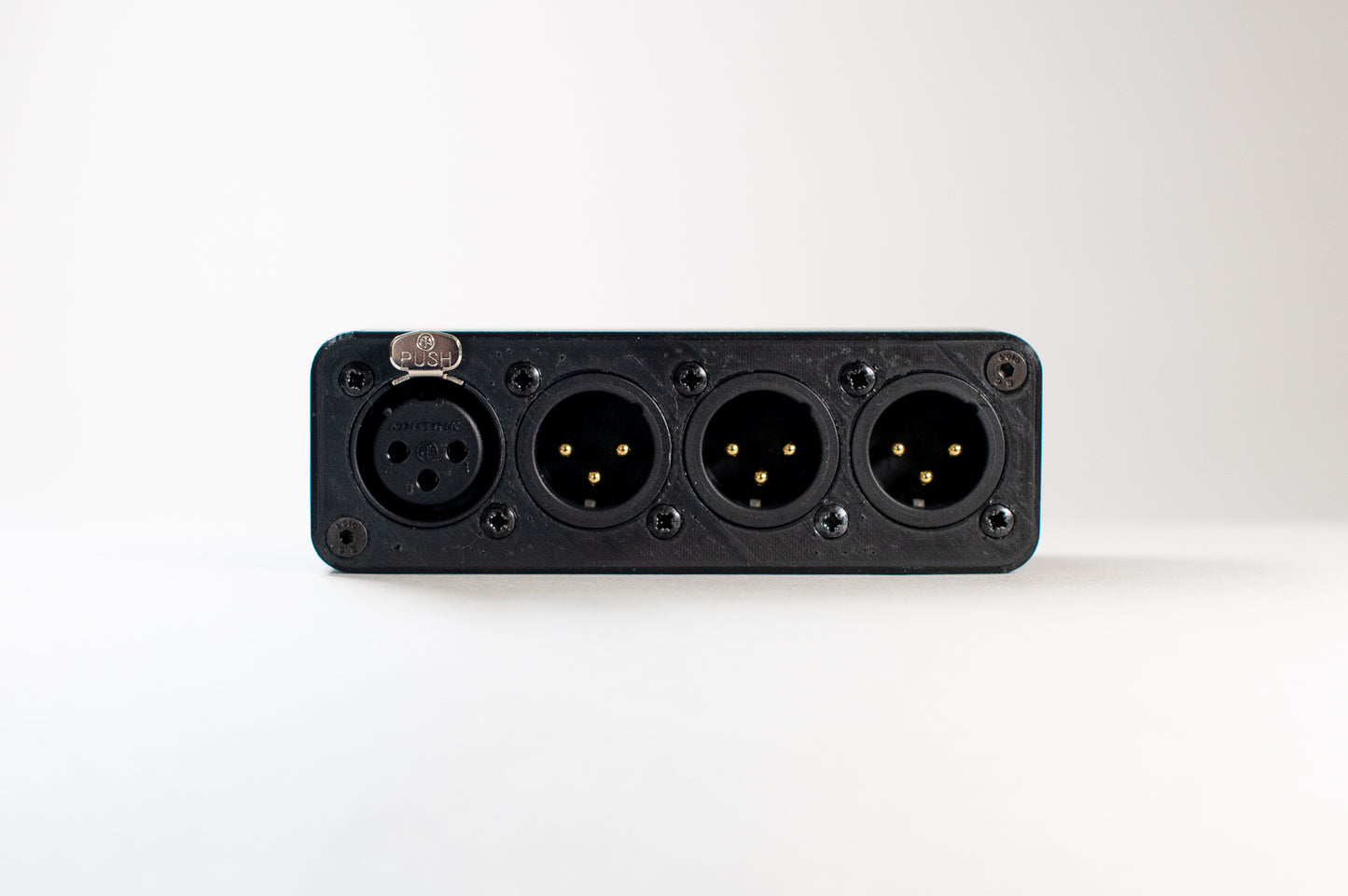

 The XLR Splitter 3 features a single XLR female input and three XLR male outputs.

Neutrik A Series XLR connectors are utilized in this box allowing for the smallest size and highest packing density between XLR centers.

The XLR Splitter 3 is perfect for the following applications:

  • Splitting line level audio to 3 destinations
  • Splitting 2-Wire Analog Partyline (for example: Clear-Com or RTS to 3 destinations)
  • Splitting Digital Partyline (Clear-Com HelixNet Powerline) to 3 destinations

Product Specs

Dimensions: 103 mm x 34 mm x 37 mm (4.06 in x 1.34 in x 1.46 in)

Input: Neutrik XLR Female

Output: Neutrik XLR Male x3

Material: Plastic Polymer

Shipping & Delivery

Ships Priority Mail

Returns & Refunds

All purchases made at Go For AVL can be returned within 30 days of receipt for a full refund. To be eligible for a return, items must be unused, in the original packaging, and in the same condition as received. To initiate a return, please contact our customer service team with your order number and reason for return. Refunds will be processed to the original payment method within 7 days of receiving the returned item.

$45.00 USD
$45.00 USD
Sale Sold out
View full details

About the XLR Splitter 3

Need to split a record feed to 3 different video recorders, or split out a Clear-Com to 3 different destinations, or just split your single line level XLR to 3 XLR’s? This is the perfect box for it!

The XLR Splitter 3 features a single XLR female input and three XLR male outputs. Neutrik A Series XLR connectors are utilized in this box allowing for the smallest size and highest packing density between XLR centers.

Additionally, this box is made out of a plastic polymer ensuring both a small and lightweight design with high impact strength and excellent rigidity.

The XLR Splitter 3 is perfect for the following applications:

  • Splitting line level audio to 3 destinations
  • Splitting 2-Wire Analog Partyline like Clear-Com or RTS to 3 destinations
  • Splitting Digital Partyline (Clear-Com HelixNet Powerline) to 3 destinations

Because the XLR Splitter 3 is passive, it is transparent and has virtually no noticeable loss of signal strength for line level audio and com based applications.

Note: It is not recommended to split a microphone level as this will put a varied impedance load on the microphone and potentially change the sound quality of the microphone. Line level audio signals can be safely split up to 6 times without a noticeable loss of quality.
